Abstraction Levels¶

Overview¶

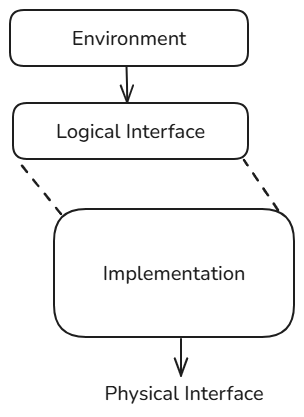

ZuSpec-dataclasses models organize device interfaces across three key abstraction areas, each serving different modeling and verification needs.

Logical Interface - How software sees and interacts with the device
- Operation level: High-level operations (e.g., “start DMA transfer”)
- MMIO level: Register-based control and status visibility
Physical Interface - How the rest of the design interacts with the device
- Operation level: High-level operations (e.g., “start DMA transfer”)
- MMIO: Memory-mapped register transactions
- TLM: Transaction-level modeling (bus protocols)
- Protocol: Pin-level signaling and timing
Internal Implementation - How the device implements its core algorithm
- Algorithmic: Functional behavior with or without timing
- Cycle-accurate: Detailed microarchitectural implementation
- Register-Transfer Level (RTL): Synthesizable implementation

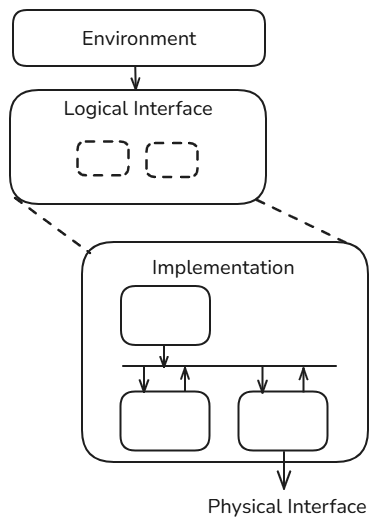

These definitions extend to the system level as well:

A primary difference between device and system view is more diversity in the abstraction levels employed. For example, an RTL level of abstraction might be employed for a key device within the system, while the rest is implemented at the algorithmic level. This enables the full system to be simulated more quickly, while preserving accuracy within the target device.

Logical Interface¶

The logical interface captures how the environment (typically software) interacts with a device. There are two key abstraction levels in play here:

Operation Level¶

The operation level focuses on key device operations exposed as async methods, representing the driver-level view of the device.

Key characteristics:

Implements device operations as async methods
Effectively driver-level abstraction
Hides register-level details behind operation semantics
For devices supporting independent concurrent operations, group related operations into Protocol classes

Example: Operation interface (generic device)

from typing import Protocol

class DeviceOperations(Protocol):
    async def configure(self, addr: int, size: int) -> bool:
        """Configure device parameters"""
        ...

    async def start(self) -> bool:
        """Start device operation"""
        ...

    async def wait_complete(self) -> bool:
        """Wait for operation completion"""
        ...

Operations-Level Implementation Pattern¶

For behavioral models implementing an operations-level interface, follow this pattern:

Key Principles:

Synchronous Operations: Operations complete immediately (no background processes)
Protocol Interfaces: Define operations as Protocol classes for type safety
Separation: Keep interface definitions separate from implementation
Direct References: Use direct interface references for external connections

Implementation Pattern:

from typing import Protocol

# 1. Define operations interface (in separate file/module)
class DeviceOperationsIF(Protocol):
    async def configure(self, addr: int, size: int) -> bool:
        """Configure device for operation"""
        ...

    async def start(self) -> bool:
        """Start the operation"""
        ...

# 2. Define external interfaces needed
class MemoryIF(Protocol):
    async def read(self, addr: int) -> int: ...
    async def write(self, addr: int, data: int) -> None: ...

# 3. Implement component
@zdc.dataclass
class Device(zdc.Component):
    regs: DeviceRegs = zdc.field()
    _mem_if: MemoryIF = None  # Set via setup()
    ops: DeviceOperationsIF = zdc.export()

    async def configure(self, addr: int, size: int) -> bool:
        """Implementation of configure operation"""
        # Validate parameters
        if addr & 0x3 != 0:  # Check alignment
            return False

        # Configure via registers
        await self.regs.addr.write(addr)
        await self.regs.size.write(size)
        return True

    async def start(self) -> bool:
        """Implementation of start operation"""
        # Set status to active
        await self.regs.status.write(ACTIVE)

        # Perform operation immediately (behavioral model)
        addr = await self.regs.addr.read()
        data = await self._mem_if.read(addr)
        # ... complete operation ...

        # Set completion status
        await self.regs.status.write(COMPLETE)
        return True

# 4. Parent component provides memory interface
@zdc.dataclass
class System(zdc.Component):
    device: Device = zdc.field()
    memory: Memory = zdc.field()

    def __bind__(self):
        return {
            # Bind parent ports to external interfaces
            # Child interfaces set up via setup()
        }

    def setup(self):
        """Call after binding to initialize child interfaces"""
        self.device._mem_if = self.memory.mem_if

Usage Pattern:

@zdc.dataclass
class Top(zdc.Component):
    system: System = zdc.field()

    async def run(self):
        # Initialize interfaces after binding
        self.system.setup()

        # Use operations interface
        result = await self.system.device.configure(0x1000, 64)
        assert result == True

        result = await self.system.device.start()
        assert result == True

Note: This pattern is appropriate when you need high-level driver-like operations without cycle-accurate timing. For models requiring concurrent background activity, use @zdc.process methods instead.

MMIO Level¶

The MMIO level focuses on memory-mapped registers and events, providing register-based control and visibility into device state.

Key characteristics:

Interface is the register file and associated events
Operation-level methods are typically implemented in terms of this interface
Captures interrupt protocols through event abstractions
Memory-based descriptors are implied but not explicitly modeled

Core components:

Register files (zdc.RegFile): Collections of memory-mapped registers
Events (zdc.Event): Logical events like interrupts, completions, errors
Protocol (Protocol): Grouping of related registers and events

Example: Device MMIO interface

@zdc.dataclass
class DeviceRegs(zdc.RegFile):
    addr: zdc.Reg[zdc.u32]       # Address register
    size: zdc.Reg[zdc.u32]       # Size register
    control: zdc.Reg[zdc.u8]     # Control register (start, stop, etc.)
    status: zdc.Reg[zdc.u8]      # Status register (busy, error, done)

@zdc.dataclass
class DeviceMmio(Protocol):
    regs: DeviceRegs             # Register file
    complete: zdc.Event          # Completion event
    error: zdc.Event             # Error event

Physical Interface¶

The physical interface describes how the rest of the design interacts with the device at various levels of implementation detail.

Operation Level¶

Early in the design cycle, it is common make the device’s physical interface the same as the logical interface. This is because the internals of the device are often implemented in terms of operations.

MMIO Level¶

Device views intended for use by software often directly expose a MMIO physical interface. This allows software emulation frameworks (e.g. QEMU) to directly interact with the device.

TLM Level¶

Transaction-level modeling provides a higher-level abstraction of bus interactions, focusing on the transfer of data rather than signal-level details.

Key characteristics:

Abstract transaction passing instead of cycle-by-cycle bus activity
Faster simulation performance
Suitable for system-level verification and performance analysis
Common for virtual prototyping and software development

Protocol Level¶

Protocol-level modeling captures pin-accurate signaling and timing relationships between the device and other hardware components.

Key characteristics:

Models actual hardware signals and their timing
Captures protocol-specific handshaking (e.g., AXI, AHB, APB)
Used for detailed hardware verification
Includes clock-accurate behavior

Internal Implementation¶

The internal implementation models describe how the device realizes its functionality, from algorithmic behavior to cycle-accurate microarchitecture.

Algorithmic Level¶

Algorithmic modeling captures the functional behavior of the device with timing characteristics but without detailed cycle-by-cycle implementation.

Key characteristics:

Functional correctness with approximate timing
Models what the device does, not how it’s implemented
Suitable for performance modeling and early software development
Can be refined to more detailed implementations

Example use cases:

Golden reference models for verification
Performance estimation
Algorithm validation
Early software/firmware development

Cycle-Accurate Level¶

Cycle-accurate modeling provides detailed microarchitectural implementation, capturing behavior at individual clock cycle boundaries.

Key characteristics:

Clock-cycle accurate state transitions
Models pipeline stages, arbitration, and resource conflicts
Captures detailed timing and performance characteristics
Used for RTL correlation and detailed performance analysis

Design considerations:

Operation granularity: How frequently is the block evaluated?
- At operational boundaries (coarse-grained)
- At implementation boundaries (fine-grained)
- Multiple levels of detail may coexist
Timing assumptions: What timing guarantees are provided?
- Cycle boundaries
- Pipeline depth
- Resource availability

Register-Transfer Level (RTL)¶

RTL modeling provides a synthesizable description of design behavior that can be taken directly to synthesis.
